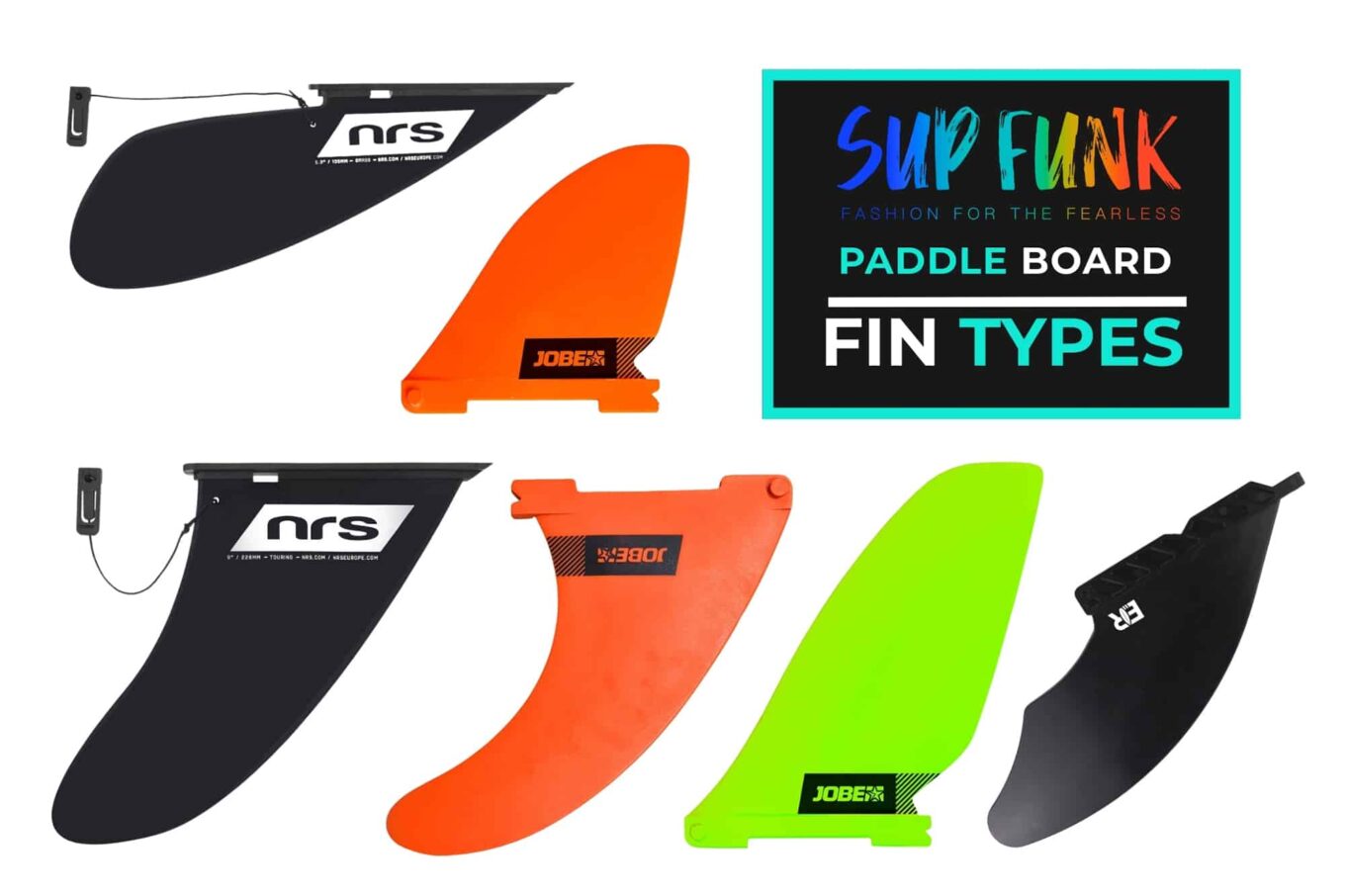

Paddle Board Fin Types: What fin to use when

If you have ever tried to paddle a SUP without a Paddle Board Fin fitted you will know it is near impossible to go in a straight line and you will soon realise how important these fins are to the function and efficiency of your paddle board. With all the different paddle board types on the market and each manufacturer opting for different fin setups, it is important to understand the different paddle board fin types available and which best suits the type of SUPing you will be doing.

Understanding paddle board fins and their compatibility with specific fin system setups, such as Slide in and US fin box systems, is key to choosing the right fin type for your needs and allows for customisation based on paddling conditions.

In this guide we will explain the function of a paddle board fin, the different types of paddle board fin setups, different types of materials used and their pros and cons to help you to choose which fin is best to use. Paddle board fins are essential components that influence your board’s stability, manoeuvrability, and tracking, so experimenting with different fin setups can help you achieve optimal performance.

What is the purpose of a Paddle board Fin?

The purpose of a tail fin is to help stop your paddle board pivoting with each paddle stroke. Fins work by providing resistance and stability to the board, acting a little like a fixed boat rudder but instead of being able to move to change direction it is in a fixed position to help your board track in a straight line.

Without a fin fitted the rear of the board will easily move in the opposite direction to your stroke side causing the board to pivot. I had this happen to me a few months ago where I didn’t clip the fin in correctly and it fell off in the water and anyone watching me trying to paddle back to shore would have found it entertaining.

Advanced paddlers can overcome this by adjust the trim of the board, but this is difficult and most paddleboarders would find this difficult.

In basic terms the fin adds resistance to side-to-side movement to help keep the board moving forward in a straight line as you apply power with each stroke. It also improves stability reducing wobble where the board has a smaller width to help improve stability. Fins play a key role in board tracking, helping your paddle board maintain a straight line and steady course, especially in challenging water conditions.

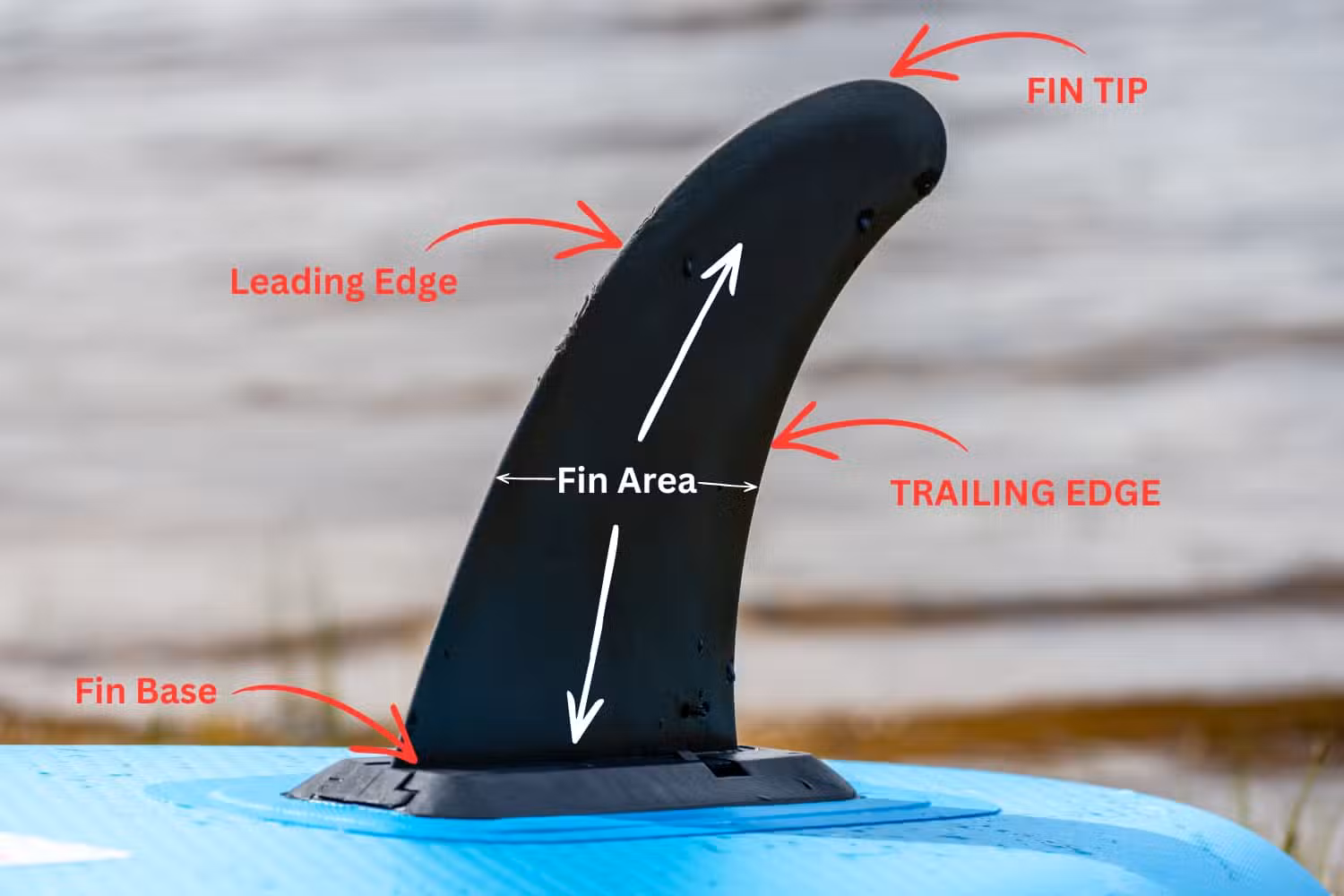

SUP Fin Design

The size, shape, and material of a SUP fin design all have an impact on how they perform on a paddle board. There are different SUP fin types available, and experimenting with different fins can help you optimise performance for various paddling styles and conditions. These differences will alter the characteristics of the paddle board in terms of control, efficiency, manoeuvrability, and speed.

Fin Leading Edge: This is the part of the fin that hits the water first where its angle to the board (called Rake). The greater the angle to the board surface, the more difficult it will become to turn but easier to track in a straight line with less pivoting on calm water, thus increasing stability. On the flip side, this will release water slower, increasing drag and making it less efficient, affecting speed.

Fin Trailing Edge: This is the rear part of the fin and, just like the leading edge, will affect how easy a board can turn and pivot along with aiding water release, impacting speed. You will see on some fins they have a cut out at the base of the fin which allows for easier turning, increasing manoeuvrability.

Fin Area: This is the overall surface area of the fin which will control how much of an impact the fin has on the board. Usually, the larger the area, the straighter a board will track but the slower it will be, but this is dependent on the design and shape of the fin and how the area is distributed.

Fin Base: This is usually the widest part of the fin closest to the bottom of the paddle board to improve tracking and stability.

Fin Tip: This is the furthest part of the fin from the underside of the board where the tip design can impact the tracking and speed of a board.

Fin Cant: This is the angle of the fin in relation to the bottom of the board (leaning of fin from the side). A fin that is perpendicular to the bottom of the board at 90 degrees will be faster, but an angled fin is more responsive during turning, giving more control but slower in a straight line.

Fin Toe: This is the angle of the fins in relation to the centre stringer of the board. A toe-in setup (fins slightly angled towards the centre line) will increase grip and manoeuvrability and is commonly found on more surf-specific boards.

Fin Flexibility: The stiffness will impact the fin’s efficiency. A stiff fin will give more stability, control, and bite in the water. However, in shallow water such as rivers, a flexible fin has advantages, being able to bend if it hits underwater obstructions.

When choosing SUP fins, you will find a variety of materials including plastic, fibreglass, and high-performance options like carbon fibre. Carbon fibre fins are lightweight and very stiff, making them ideal for advanced paddlers seeking optimal speed and control. Selecting different fins allows you to tailor your board’s performance for specific paddling conditions, whether you’re looking for more stability, better tracking, or increased manoeuvrability.

Fin box types

A fin box is used to mount a fin to the paddle board, with several different types currently on the market and each paddle board manufacturer having their own preference. Some systems use fin box fins, such as US fin box fins, which are interchangeable fins compatible with a universal system found on many inflatable SUPs and surfboards. The fin is inserted into the fins slot, which is the part of the board designed to hold the fin securely. Each fin will only fit the box type it is designed for, so be careful to check which type your paddle board uses when purchasing a replacement paddleboard fin. Innovative options like the spin box system and removable central fin box offer even more versatility, allowing for easy customisation and transport of your fin setup.

Most Popular Paddle Board Fin Box Types

US Fin Box Type

You will find that the US (Universal Standard) Fin Box is the most common of all types and has been used on surfboards for years with thousands of compatible fins available on the market. US fin box fins are designed to fit this universal system, making them easy to swap and customise for different paddling conditions or to replace if damaged. The fin is secured in place by using a locking screw at the front of the fin.

Quick Lock, Flip Lock Fin Box

The quick lock, flip lock design is becoming more popular now on inflatable paddleboards due to their ease of use without any special tool requirements and quick fin release design. The fin is retained in place by a lever at the back of the fin box, which makes it a little bit less secure than the US style of fin box where the fin is secured in place by a small screw.

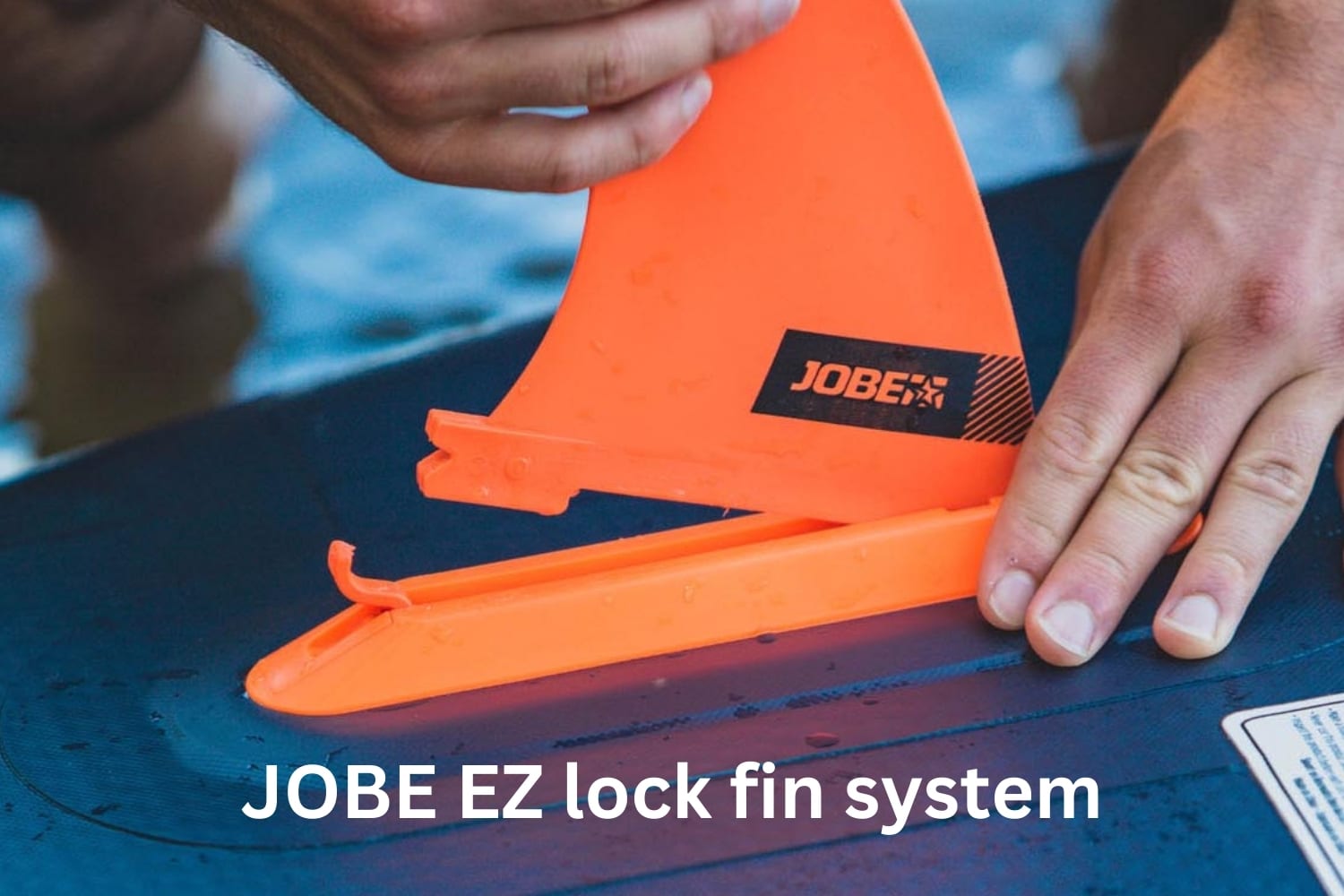

You will find this type of fin box fitted to the Jobe Premium Paddle boards and Jobe Elite Paddle Board range called the Jobe EZ Lock Fin System. After years of use we have only had a fin come off in the water once using the system and that was our own fault where we hadn’t fully closed the clip, and the fin fell off straight away in the shallows.

During 2026 Jobe have changed their design of the ES Lock Fin system where the fin base is smaller meaning a standard Quick Lock fin will no longer fit. Care needs to be taken when ordering replacement fins for Jobe paddleboards because there will now be two sizes of fins available so if in doubt feel free to contact us.

Slide-In Fin Box

The slide in fin box is also a popular design now found on inflatable SUPs where the fin slides into the fins slot, which is the channel of the fin box that holds the fin securely in place. The fin is retained by a push fit plastic pin attached to the fin box by a thin cord. This makes fitment and removal of fins simple and efficient, and there are now a range of different fin designs to choose from on the market, although nowhere near as many as the US Style.

You will find this type of fin box on the Jobe Aero Lite Paddle Board Series and NRS Range of Paddle Boards, with NRS having several different fin styles to fit your paddleboarding requirements.

Fixed Fins

There are several manufacturers that opt for fixed fins that are permanently attached to the paddle board and cannot be removed. These are often referred to as moulded fins, which are built-in, durable, and convenient. While moulded fins offer excellent durability and require no tools or fitment, they can make the iSUP bulky when rolled or folded away, and if damaged, cannot be replaced. This also limits the paddleboarder’s options to change fin style depending on their type of paddleboarding or water environment, such as shallow river waters.

You will find that most fixed fins are secondary fins, such small side fins or like the small fixed fin at the front on the Jobe Duna Elite paddle boards. These small fins are to try and and add extra straight line tracking with some side fins designed to try and clean up the water exit to improve efficiency while limited impact on manoeuvrability. In many cases, boards feature two fins, a twin moulded fins setup which enhances manoeuvrability and stability, especially in surf conditions. There is generally no reason to swap or remove these, and they are perfectly fine as fixed fins.

Fin Placement and Layouts

You will find various fin arrangements and different number of fins fitted to the tail of a board depending on the paddleboard manufacturer and the designed use case of the board. Common setups include single fins, the thruster setup (three fin), which balances tracking, manoeuvrability, and stability, making it popular on all-around iSUPs. A quad fin setup is often used for high-performance surf or whitewater conditions, offering enhanced speed, hold, and manoeuvrability with multiple smaller fins. The twin fin setup can provide a good balance between manoeuvrability and tracking, and is effective for both surfing and general paddling performance.

The fin position impacts the manoeuvrability of a paddle board where the closer they are set to the rear of the board the better the tracking performance of a board. However, the further back the fins the harder it will be to turn a board impacting its manoeuvrability, so a balance has to be found depending on the type of board. Different fin setups and placements can significantly change the board’s feel and handling, allowing paddlers to tailor performance to their preferred style and water conditions.

How many fins are best?

Single Fin Designs

Boards designed for flat water paddling such as lakes and canals will mostly have just 1 fin setup. This single fin box design paired with a 8-10 inch fin strikes a perfect balance to help the rider track in a straight line while still being manoeuvrable to navigate the open water.

This strikes a nice balance with minimal drag to maintain the boards efficiency moving through the water giving optimal performance with each stroke.

By adding additional fins to the board it can improve tracking but impacts the manoeuvrability of board. Again there is a balance here as you will often see 2 fin designs but the fins will be smaller than a 8-10 inch fin to help minimise drag and maintain the ability to turn.

Over the years we haven’t tested many with twin fin setups, but we do prefer just a single fin design as it is convenient and we can change the single fin type depending on the water we are paddling such as large lakes or rivers.

The NRS Clipper and most Jobe paddle boards do use just a single fin setup arrangement.

2+1 Fin Designs

Another very popular fin arrangement you will find on paddleboards is where there are 2 smaller fins closer to the center followed by a single larger fin at the rear of the board. These 2 smaller fins will aid in tracking making it easier for a paddle to keep in a straight line but again can impact manoeuvrability.

We mention in our What Size Paddle Board Do I need about the impact and importance the width of a board has due to the riders reach. If you want a wider more stable board to carry more gear or tandem with friend or pet then a 2+1 setup can help you track in a straight line due to the angle you will hold the paddle to clear the side of the board.

3 Fin Designs

This fin arrangement is similar in design to the 2+1 fin arrangement but all 3 fin boxes are the same size.  It has the same pros and cons as the above but we personally prefer this arrangement because you have the flexibility to really dial in board performance depending on the type of water you are on. You can find this design on the NRS Jukdo and the beauty is that you can fit just one centre touring fin, 2 all water fins and a touring fin or 3 all water fins which we really like when taking our Jukdo’s out in coastal waters.

Quad and 5 Fin Designs

These can be found on a few paddle boards but this configuration is not as popular on the boards designs available here in the UK.

So to answer the question how many fins are best? It really depends on the type of board and what type of water you will be paddling. For touring we personally prefer just 1 single touring fin.

For coastal we prefer a 3 fin setup or possibly 2+1 but we have to say we have managed fine with just a single fin design for years without any problems.

Paddling rivers in the UK we like a single or twin fin setup with maybe flexible fins if tackling shallower waters like the River Wye. This just reduces the likely hood of snagging on obstructions lurking below the surface often found in rivers.

For surfing then 3+ fin configurations work great giving you the flexibility to fine tweak the setup to your liking to give you the best manoeuvrability and glide for riding waves.

Although these are our preferences we must stress that the average recreational paddler really wouldn’t notice much difference and more care is better focused on the actual fin design and shape.

Fin Materials

The material a fin is made out of will determine its stiffness, weight and durability.

Stiffness is important as it impacts the paddlers control and feel over the board whilst turning. A stiff fin will not flex under slide load giving a paddler better feel, control and better manoeuvrability as it bites into the water better aiding manoeuvrability.

Weight for most is not really a concern unless you are competition racing or performance SUP surfing but if it is important to you then fins made out of composite materials will provide adequate stiffness and strength whilst also being lightweight. Carbon fiber fins, in particular, are known for being extremely lightweight and very stiff, making them ideal for advanced paddling and high-performance scenarios.

Durability speaks for itself depending on the waters you are paddling but you need a fin that is strong enough to take the odd bump and scrape during launching. This is especially important around the area where the fin meets the fin base as this can often be the week point and easy to break due to excessive side forces.

Hard Plastic Fins are relatively inexpensive, heavy with good impact resistance and a little flexibility around the tip. Some more expensive designs will have fibreglass cores which are over moulded to increase strength, reduce flexibility and will be slightly lighter over all.

Flexible plastic fins can range in cost depending on the exact plastic polymer used with many of the cheaper versions being quite thick to retain a little stiffness but are still very flexible. We like special designed fins made from flexible impact-resistant polymers which while flexible they still retain enough durability and rigidity for paddle board control.

Fin Sizes and Their Impact on Performance

When it comes to understanding paddleboard fins, we can’t stress enough how much the size of your fin can totally transform how your board feels and performs out there on the water! Fin sizes usually measured by their depth from the base to the tip directly influence your board’s tracking, stability, and manoeuvrability in ways that’ll blow your mind.

If you’re someone who loves flat water paddling or those epic long-distance touring adventures, we’d definitely recommend going for a larger fin typically in that sweet 9-10 inch range because it’ll help your board track straighter and feel incredibly stable, especially when conditions get a bit choppy. These larger fins keeping you moving in that perfect straight line with way less effort, which is absolutely ideal for covering distance efficiently and enjoying those peaceful moments on the water.

On the flip side, smaller fins are exactly what we recommend for surf specific SUPs or when you’re exploring those amazing shallow water spots! A shorter fin reduces drag and gives you those quicker, more responsive turns that make catching and riding waves feel absolutely magical, plus it makes navigating tight spots so much easier.

If you’re the adventurous type who loves exploring rivers or areas where the water gets shallow, smaller fins also help prevent that frustrating snagging on rocks or debris that can really kill your flow. At the end of the day, understanding how different fin sizes affect your paddle board’s performance lets you completely tailor your setup for whatever conditions you’re facing whether you want that beautiful straight line tracking of a large center fin for flat water adventures, or the incredible agility of smaller fins for surf sessions and shallow water exploration!

Click Fins, Slide Fins and Their Benefits

Click fins have totally revolutionised the way we set up our boards, especially when you’re using inflatable paddle boards! With a simple, tool-free installation, these fins just slide and lock into place in seconds, making them a favourite for anyone who values both convenience and versatility. This innovative fin system is featured on many leading paddle boards, including the EZ Lock Fins fitted to the Jobe Premium and Elite paddleboard range and it’s designed to make swapping fins quick and hassle-free, no more fumbling with screws or worrying about losing parts on the beach! Honestly, what’s not to love?

The real benefit of click fins is how easily you can adapt your fin setup to match whatever paddling adventure you’ve got planned. Heading out for a relaxed session on flat water? Pop in a larger touring fin for better tracking and you’re golden! Planning to hit the surf or ride some waves? Switch to a smaller, more responsive fin in moments and you’re ready to shred! This flexibility means you can experiment with different fin configurations to find what works best for you, whether you’re after speed, stability, or manoeuvrability.

Slide Fins are also very convenient just like the click type making swapping fins an absolute breeze. You will find this type of fin box on the NRS paddle board range and Jobe Lite paddle boards.

We have no preference with either of these types of designs the only thing we would say is that with the click style you really have to double check the clip is fully closed but once secure we have never had any issues.

So which is the best fin to use on a paddle board?

There is no one fin type that is best suited for all types of paddle boarding, but here are a few general points to help you narrow down your choices. NRS paddle boards like the Jukdo and other inflatable paddle board manufacturers offer a variety of models with customisable fin setups, allowing paddlers to tailor their board’s performance to different conditions.

Flat water paddling or entry level paddle boarding: choosing a fin measuring around 8-10″ generally a good size to start with. These fins have a large surface area, giving the required side-to-side stability a novice paddle boarder requires while helping to track in a straight line.

Touring paddlers will want to focus more on tracking, with most fins around 9-12″ in size. Just like the flat water fins, these have a large surface area, making them very stable but with less manoeuvrability.

River paddling: we advise using much shorter tail fins to give extra clearance to the river bed, around 4-5″ inches” in size. Where river levels are low or the river is shallow in places like the river Wye here in the UK during the summer months, we like to use good quality flexible fins that can bend if they come into contact with the bed or submerged rocks.

For more advanced paddlers or someone looking for more manoeuvrability when required, such as on smaller lakes, a more curved fin shaped like a traditional surf fin can be ideal. Fins with a more rounded and curved trailing edge will make a paddle board more agile but with a little less stability. They will also be harder to track in a straight line as you paddle, and the rider will need to focus more on a good paddling technique.

Intermediate and advanced SUP surfing should look for multiple fin setups where various fin sizes and arrangements can be used so the rider can change configurations to get the optimal performance they are looking for.

Final Thoughts on Selecting the Best Paddle Board Fin

Choosing the right paddle board fin is essential for maximising your paddleboarding performance and enjoyment. Whether you prefer flat water paddling, surfing, or river adventures, understanding the different paddle board fin types, sizes, materials, and fin box systems will help you find the perfect fit for your needs.

From single fin setups ideal for straight line tracking to versatile thruster and twin fin configurations that enhance manoeuvrability, the right fin setup can significantly impact your board’s stability and control.

Popular options like US fin box fins and innovative systems such as click lock and slide in fins offer excellent customisation and convenience. By experimenting with different fins and placements, you can tailor your paddle boards feel and responsiveness to match your paddling style and conditions.

Investing in quality fins tailored for your paddling environments ensures an optimal paddling experience every time you hit the water.
